setup your local smarteye server

system requirement

aliyun or Amazon AWS recommended,
since mysql 8.0 employed, suggest WINDOWS SERVER2016 and higher version.

at least 4core CPU&8GB RAM, default HDD(e.g., 40GB) will be OK.

pls note, no anti-virus software running.

AWS is recommended.

all software including smarteye server/client,manuals,SDK free download from google cloud drive,

https://drive.google.com/open?id=1j_DcJnEyDv3AE70UiZvSk-suUEUWsTQI

or

drop box share link,  https://www.dropbox.com/sh/2i70zr0gewywofa/AADkFn1eCfmi2CzLeKNdbeCKa?dl=0

ports involved

9701/TCP, SIP terminal cmd for device(PU)/client(CU) login

9702/UDP, SIP terminal cmd
for device(PU) login

9702/TCP, bvwebsocket stream

9703/UDP, bvrtc/webrtc stream

9703/TCP, bvrtc stream, for file upload/download

9781/TCP, https
(recommend)

9780/TCP, http
( not recommend)

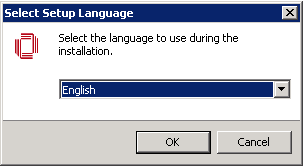

run setup

right click to run as administrator

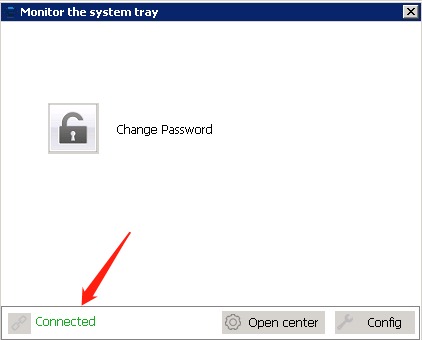

below means the server is running,

for AWS, pls enable those ports in inbound rules,

enable/open TCP/UDP ports to AWS EC2/VPS server,
besides firewall inbound rules, you have to do it in AWS website,pls refer to,

Authorizing Inbound Traffic for Your Windows Instances, https://docs.aws.amazon.com/AWSEC2/latest/WindowsGuide/authorizing-access-to-an-instance.html

initial configuration

nothing needs to be initiated, leave all in default.

start to use

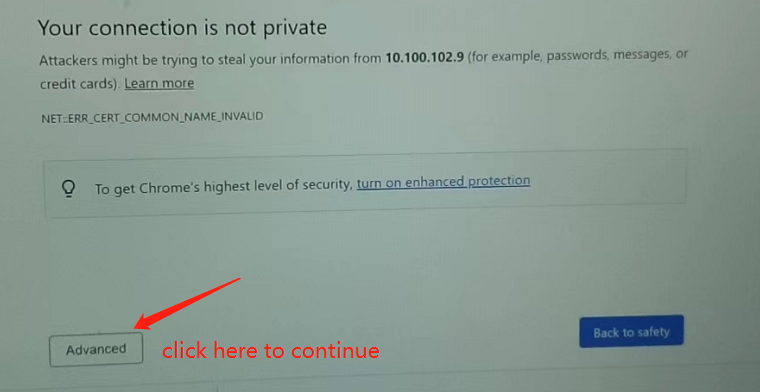

run chrome,
https://serverIP:9781,
user:admin, passwd:123456.
for chrome on server PC, entern

https://127.0.0.0:9781/center

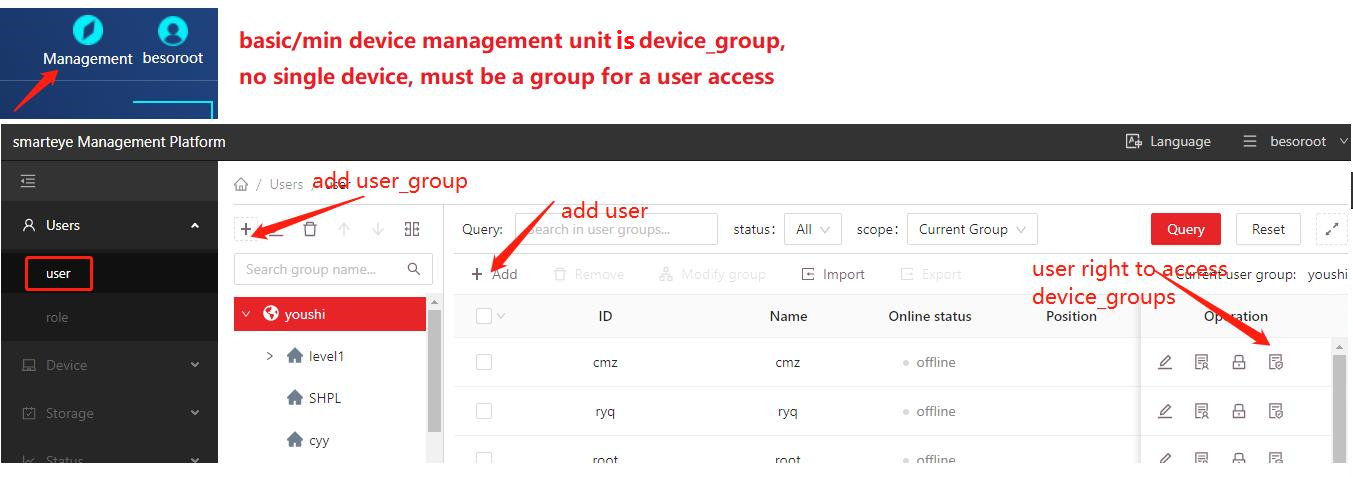

you may create new user account in Managerment to the upper right corner in the WEB page.

pls note, for smarteye system, no need to create a device account before it login, a device/camera will add itself to the device list on server only if correct serverIP&ports entered, that means a new device is added to the server's device list automatically.

the only way to control access to those devices/cameras is by user right, so just create new users, and enable the user right to access some certain devices.

Management Center

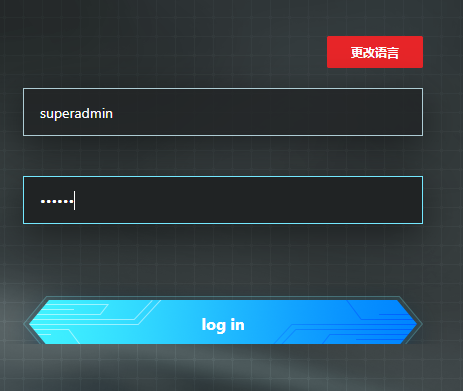

visit

https://server-IP:9781/center,
default user/passwd is superadmin/123456, for chrome on server PC, enter

https://127.0.0.1:9781/center

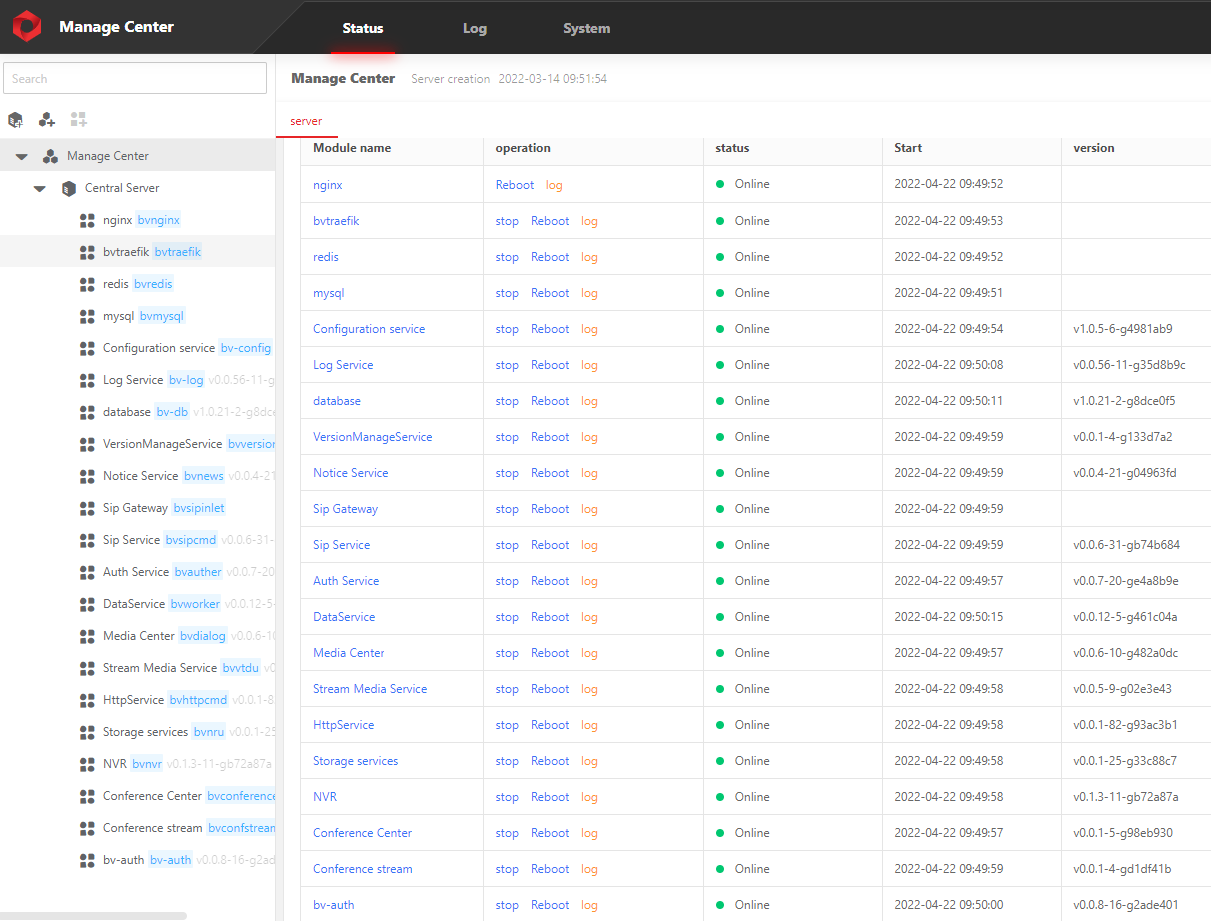

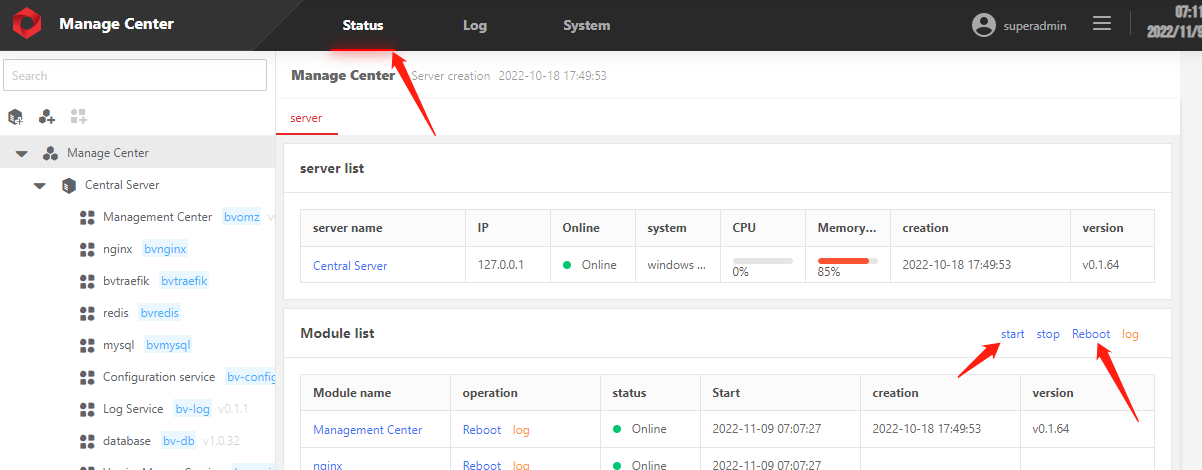

check system status

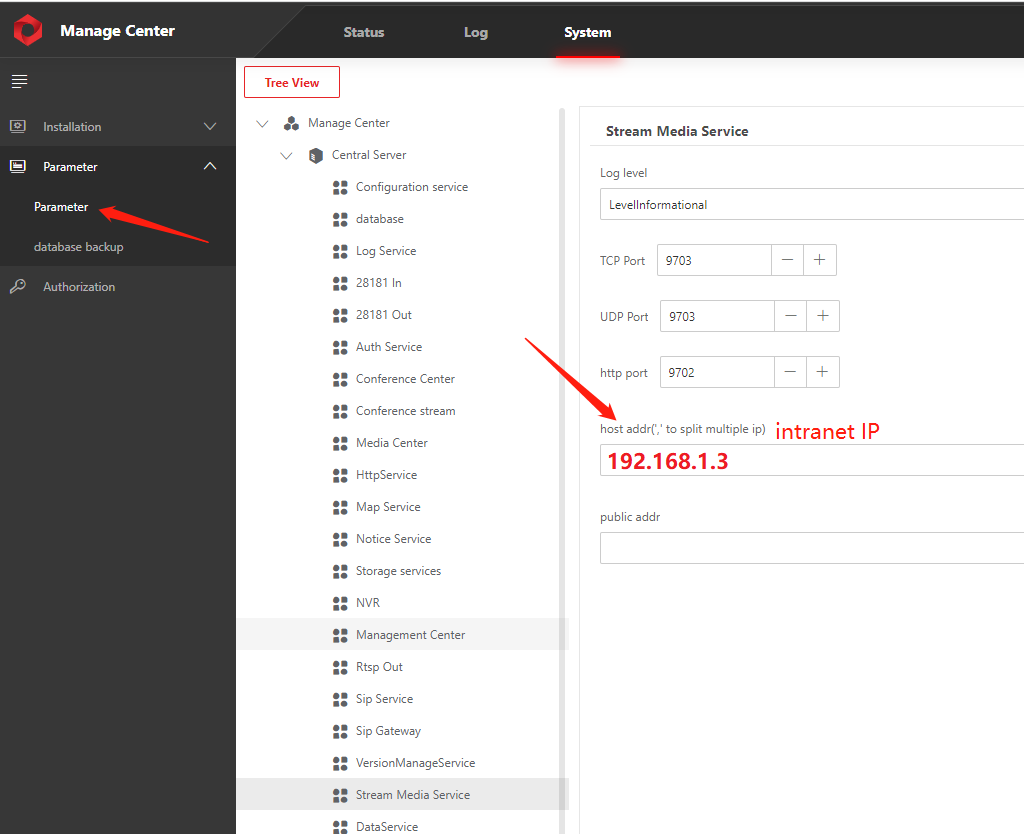

settings

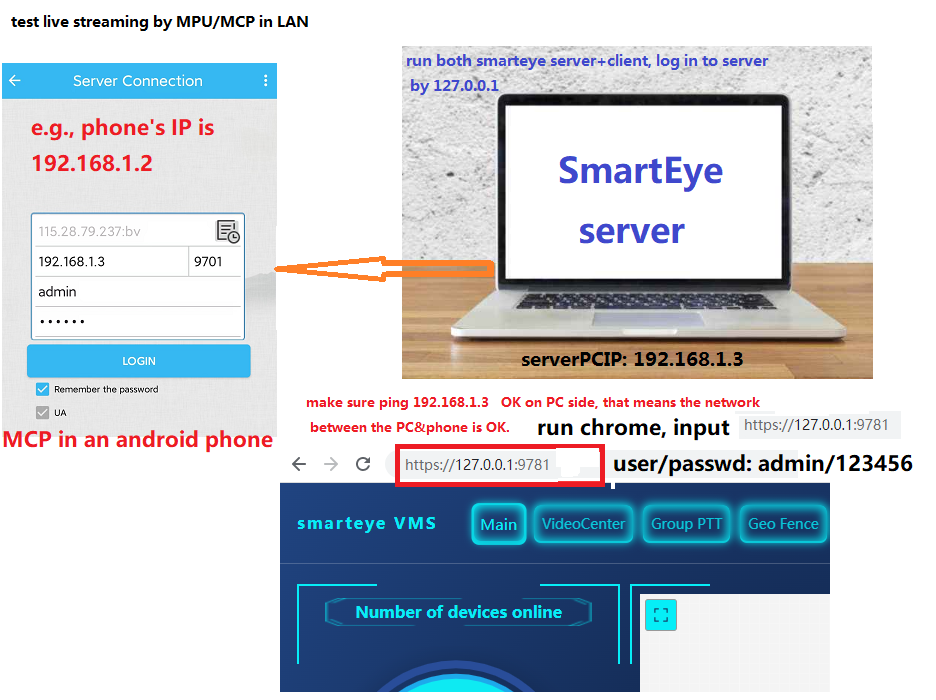

pls note, for installation in LAN, e.g., on a local Laptop with both wifi&ethernet, this PC's IP needed to be entered here as intranet IP,

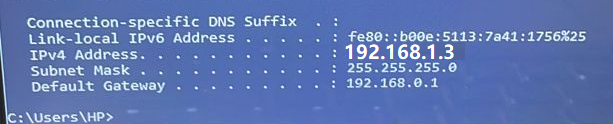

e.g., the Laptop's IP is 192.168.1.3, (run cmd,
ipconfig to check local IP)

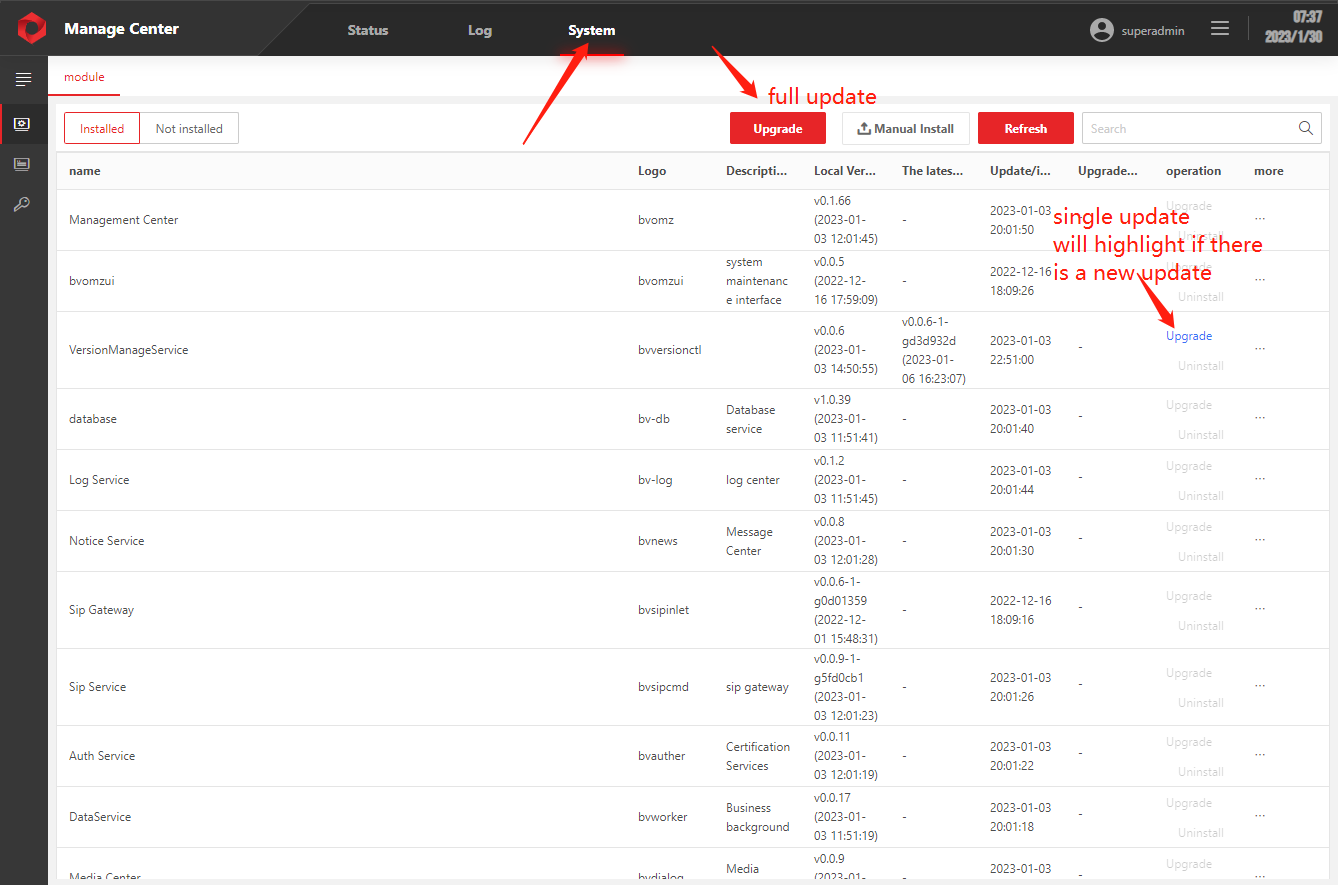

online update

check software modules, update will be highlight if there is an update.

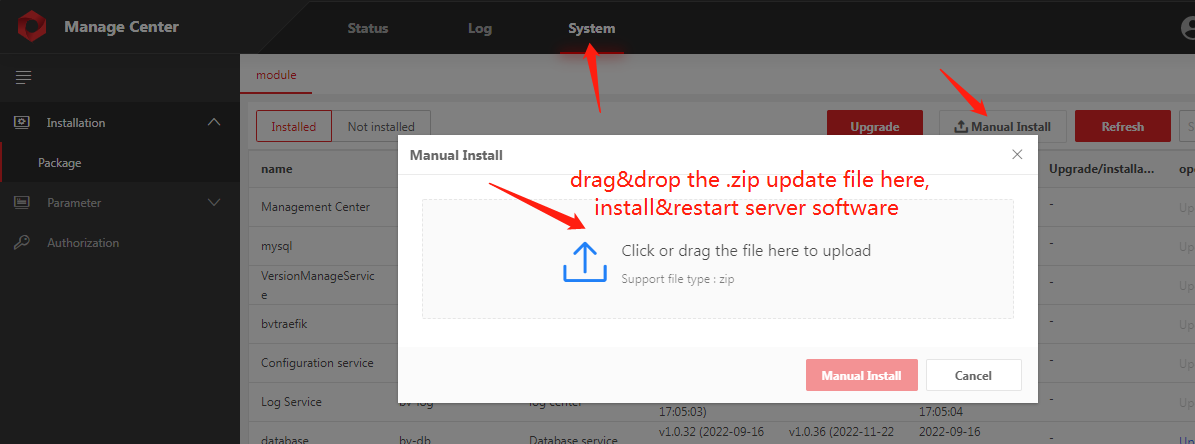

update a .zip file

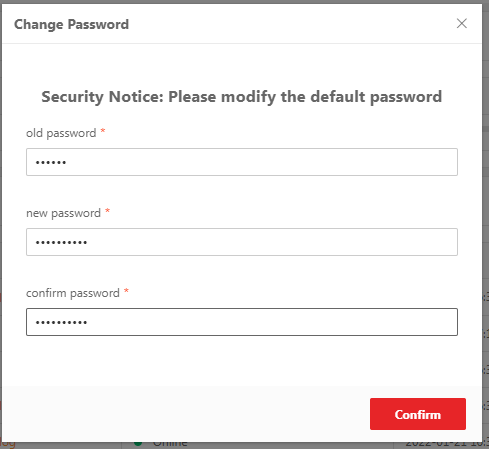

change passwd of superadmin

pls note,

there are 2-level management here.

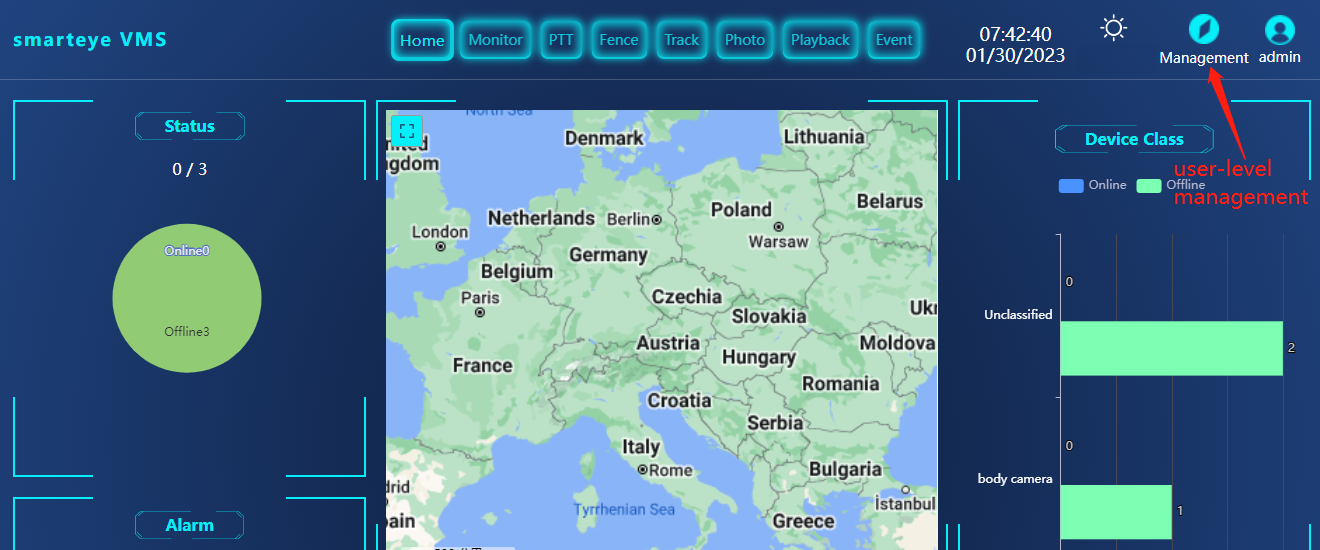

1) user-level,
for user management(new users, user right settings etc) , device management etc.

it's accessed by URL,
https://serverIP:9781

2) system-level, system settings, system status, software update etc.

it's accessed by URL:
https://serverIP:9781/center,
by superadmin
